Water Well Drilling Machines Trailer Mounted Hydraulic Water Well Drilling Equipment

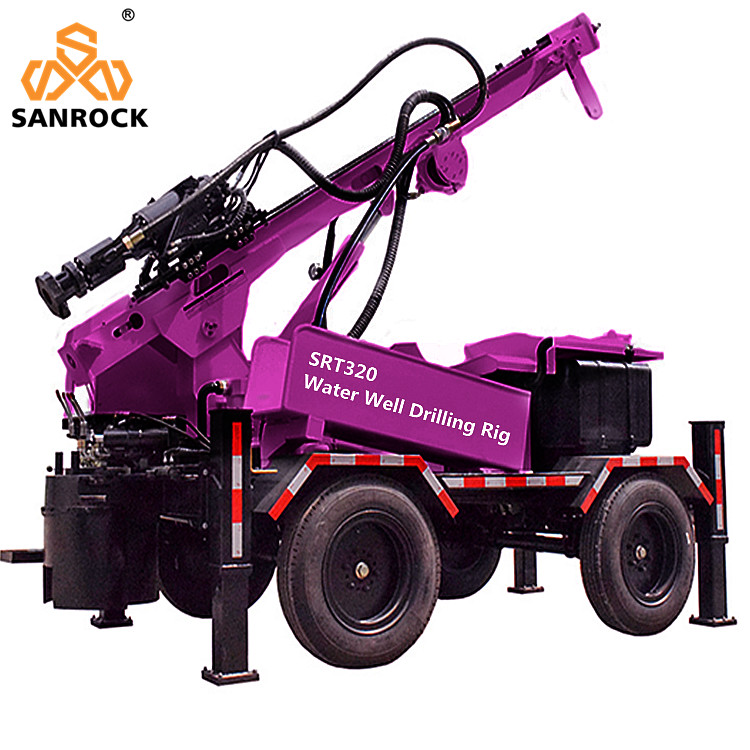

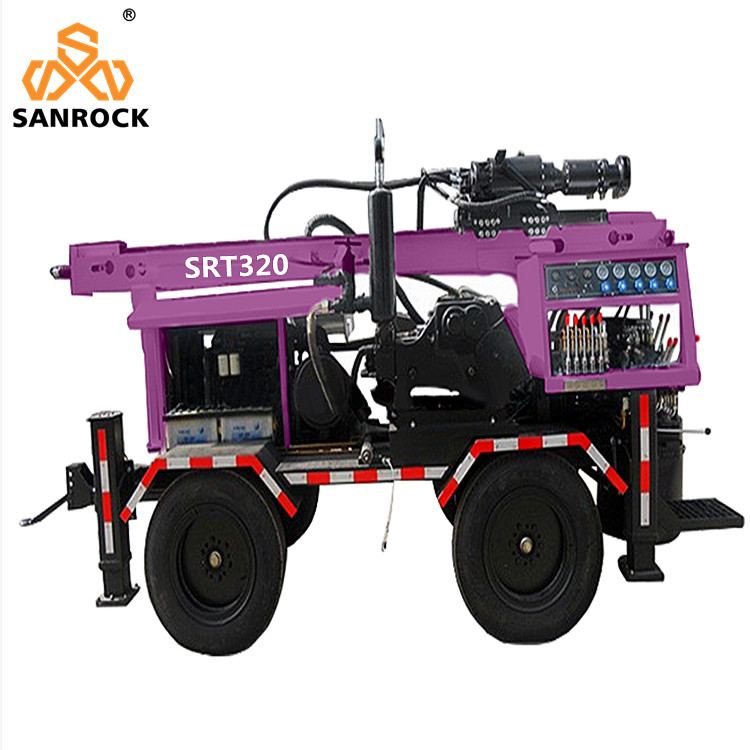

SRT320 trailer mounted water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement.
Products Description
| Product name:water well drilling rig | | Model Number:SRT320 | | Drilling depth :260m | | Host Power :87Kw | | Work Pressure(Mpa):1.05-3.0Mpa | | Consumption :16-30 m3/min | | Bore diameter:115-300mm | | Skid max angle:90° | | Footage efficiency:5-20m/h | | Travelling speed:0-2.5Km/h | | Lifting power :8T | | Rotary torque:3900N.m | | Pump speed:172--450L/min | | Flow rate:450L/min | | Dimension(L*W*H):5620*2250*2600mm | | Weight:6000Kg | | |
Advantage of trailer mounted water well drilling rig:
1. Safe and stable traveling system, two wheels type.
2. Centralized operating system, easy to operate.
3. Powerful feeding and rotating system, two hydraulic rotary and lifting motor to balance the speed and force.
4. As the ball type chuck and driving rod, it can complete no-stopping rotating while the spindle relift.
5. The pressure indicator of bottom hole can observe and control the well conditions easily.
6. Close levers, convenient to operate.
7. Compact size and light in weight are easy to set up and transport o working plains and mountain area.
