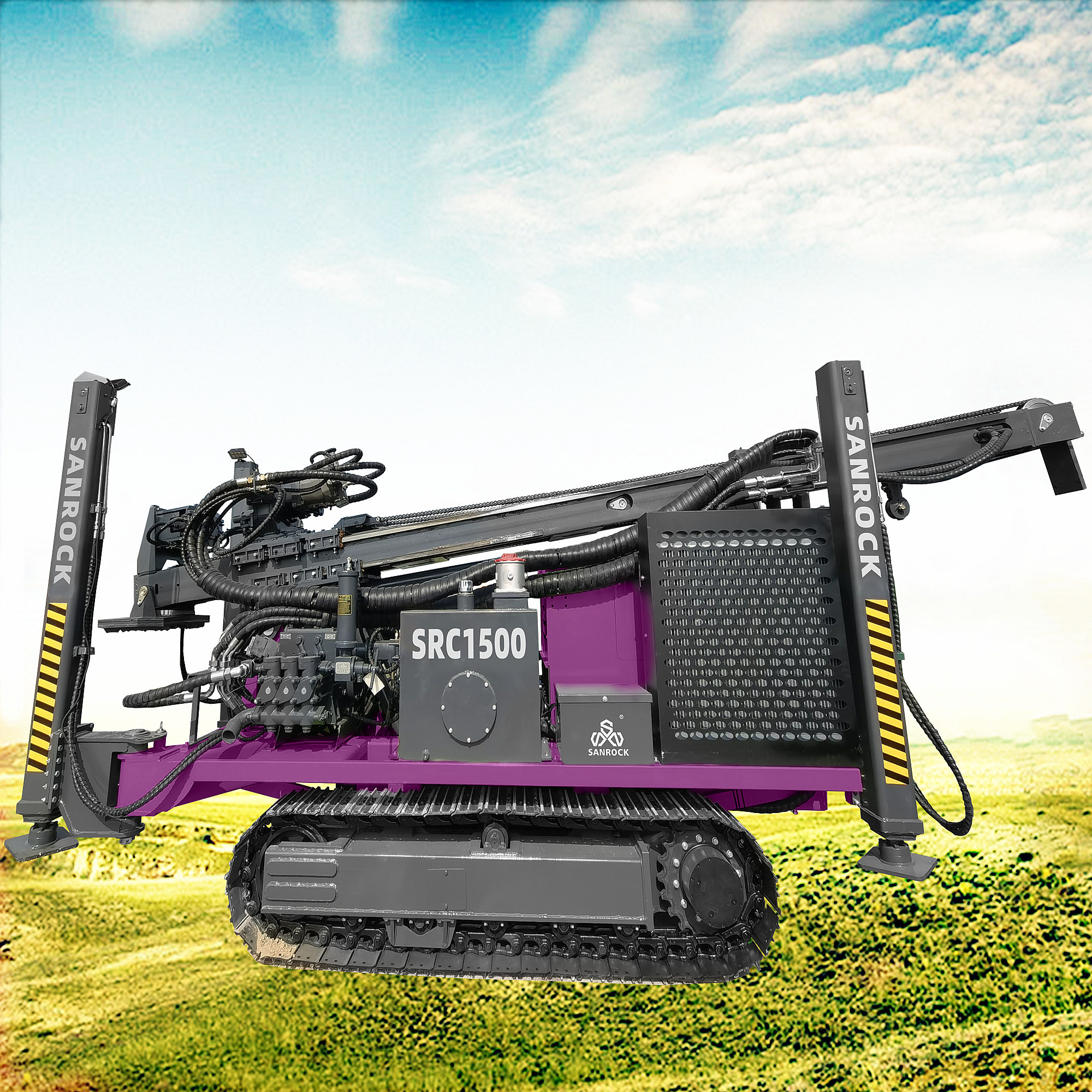

Geotechnical Core Sample Drilling Rig Hydraulic Exploration Diamond Core Drilling Rig
Features:
1.Surface hydraulic core drilling rig has excellent performance, drilling depth of 1500meters.
2.Mud pump system meets the requirements of different geological conditions and different drilling hole diameter.
3.The standard configuration is NQ, HQ PQ diameter drilling tools which can meet the high pressure, high torque, high rpm drilling parameters to achieve efficient and fast hole formation.
4.High Efficiency With big torque, high power unit allocation and with reasonable structure design ,all these guarantee the drill rig’s high operation and performance efficiency.
5.With an elegant outline, compact structure, reliable performance and operation easily.
Drilling rig is multifunctional, it can be used with mud pump.The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose.
Note:16KW brushless generator,Hydraulic double cooling system,BW160/10 Mud Pump,High support legs, Remote control walking, 4m drilling mast(optional)
Products Description
| Model | SRC1500D | | Drilling Depth(m) | 1000-1500 | | Hole Diameter(mm) | 138-325 | | Max.Feed Stroke(m) | 6.8 | | Power Head Motor | 8k-800*800 | | Engine Power(Kw) | 295 (6 cylinders) | | Working Pressure(mpa) | 1.7-3.5 | | Air Consumption(m3/min) | 18-42 | | Rotary Torque(N.m) | 16000-19000 | | Rotary speed(rpm) | 30-150 | | Coring Rotary Speed(rpm) | 300-1500 | | Max.lifting Force( T ) | 50 | | Drill Pipe Diameter(mm) | 76/89/102/114 | | Drill Pipe Length(m) | 1.5/2/3/6 | | Move Type | Hydraulic Track | | Walking Speed(Km/h) | 2.5 | | Gradeability(Max.) | 30° | | Dimension(mm) | 5100*2200*3100 | | OverallWeight(T ) | 14.2 | | |
It can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc,
Drilling rig is multifunctional, it can be used with mud pump.The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose.
