Booms Jumbo Drilling Rig Mining Equipment Underground Hydraulic
Drilling Rig For Sale

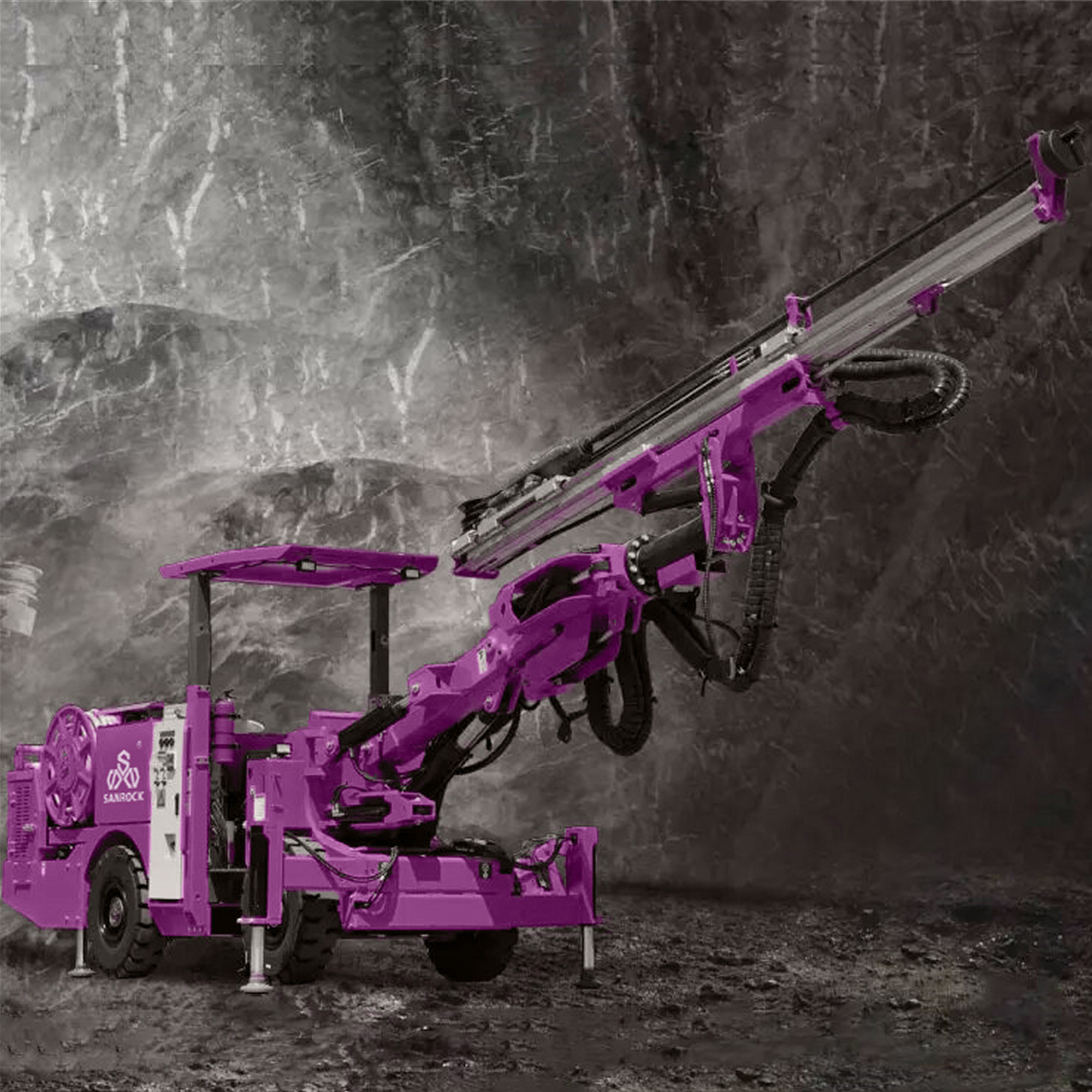

SRUP4S production drilling rig is developed for long hole mining. I
tcan drill holes with diameter from 64mm to 89mm and maximum 41m
deep. The suitable cross-sections(width x height) is from minimum
3.8 x 3.8m to maximun 5.3m x 5.3m.
Advanced control system:
Drill rod angle indicator on the operation panel shows small
deviation of the rod positioning. It guarantees the long hole
drilling quality. The automatic rod anti-jamming and return system
can protect rock drill and drill tools.
Rod handling system:
Rod handling system can extend and remove the rods automatically.
The rods handler capacity is 21+1pcs. The rod handling system
relieves operators from heavy lifting work and is therefor an
essential feature of maintaning high productivity.
Flexible boom design:
The positioning unit of the boom can do 360°dring drilling and
parallel drilling within the width of 3m.
Rock drill:
International brand high-power rock drills can provide a variety of
rock drilling solutions according to the surrounding rock
conditions and rock drilling needs.The standard configuration is
18KW,and the optional 22KW or 25KW is available.
Products Description
Parameter Model | SRUP4S | Rock Drill | Working Area(W×H)(m) | Min.3.8×3.8-Max.5.3×5.3 | Model | A22D/L | A25L | Hole Diameter(mm) | 33-76 | 76-115 | Max.Impact Power(Kw) | 22 | 25 | Impact Rate(Hz) | 73 | 44 | System Pressure(Bar) | 250 | 230 | Rotation Speed(rpm) | 0-215 | 0-135 | Max.Rotation Torque(Nm) | 1000 | 1550 | Note | Other models are available | Feed | Model | TF18-5A | TF18-6A | Total Length(mm) | 3446 | 3751 | Drilling Rod Length(mm) | 1525 | 1830 | Propulsion Force(KN) | 15 | Rod Handler Capacity
(optional) | 21＋1 | Hole Depth(mm) | 34.5 | 41.5 | | Hole Diameter(mm) | 64-89 | Boom
And Positioning | Propelling Compensation(mm) | 1200 | Feed roll-over | 360° | Boom up/down | 20°/ -60° | Swing Boom Parallel
Moving Stroke | 1500mm | Stinger Backward Stroke | 2000mm | Stinger Forward Stroke | 1150mm | Hydraulic
System | Max.Pressure(Bar) | 230 | Hydraulic Oil Tank Volume(L) | 165 | Filtration Accuracy(µm) | lO | Air
Compressor System | Motor Power(KW) | 5.5 | Max.Displacement(L/S) | 11.6 | Working Pressure(Bar) | 8 | Water
System | Motor Power(KW) | 3 | Max.Flow(L/min) | 80 | Max.Working Pressure(Bar) | 25 | Electrical
System | Total Installed Power(KW) | 83.5 | Main Motor Power(KW) | 75 | Voltage(V) | 380 | Cable(m) | 100 | Chassis | Engine | Weichai 62.5KW | Articulated Steering Angle | ±38° | Fuel Tank Capacity(L) | 60 | Traveling Speed(Km/h) | 14 | Dimensions | L×W×H(mm) | 9074(9350)*2409*2318(3018) | Clearance(mm) | 346 | Weight(Kg) | 17600 |
| |
