    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    Ask Lasest Price
    Brand Name : SANROCK
    Model Number : XQ500-S
    Certification : CE ISO 9001:2015
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000Set/Sets per Month
    Delivery Time : 15-25days
    • Product Details
    • Company Profile

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

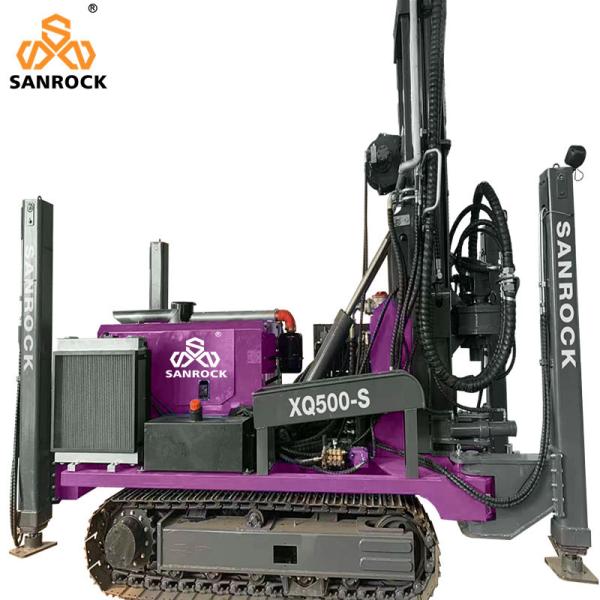

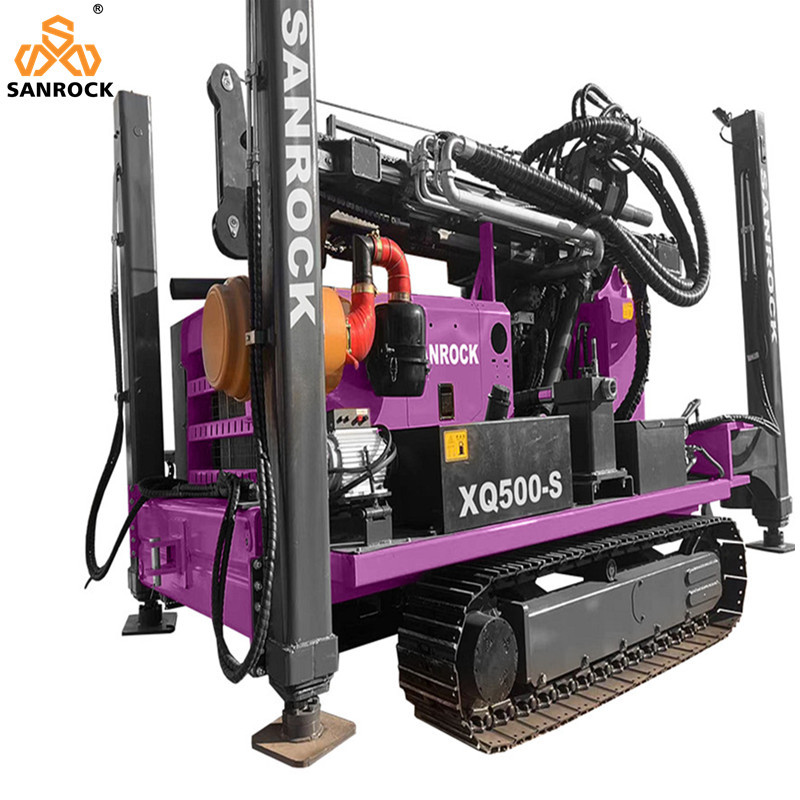

    XQ500-S Crawler water well Drilling Rig it is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well, agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratum water sourcing project.

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill MachineDeep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill MachineDeep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    1.This machine can drill in different stratum, The maximum bore diameter can be 350mm,maximum depth can be 500m.
    2.This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.
    3.Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.
    4.This machine adopts excavator crawler chassis and make the machine a high off-road performance, It also can be mounted on a truck to make it more maneuverability.
    5. The water well drilling rig rig uses dual oil pumps for oil supply. A single pump is used for drilling, and a double pump is used for confluence when lifting. The power loss

    is small and the auxiliary time is short.

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    Product Description

    Type
    Rotary Drilling Rig
    Power Type
    Diesel
    Drilling Diameter
    140-350mm
    Drilling Depth
    500m
    Air consumption
    17-42 m³/min
    Working air pressure
    1.7-3.0 MPA
    One-time advance length
    3.7m
    Name
    Water Drilling Rig Machine
    Product name
    water well drilling rig
    Application
    Water Wells Rock Drill Rig
    Feature
    Hydraulic Controlling,Light Weight ,High Drilling Efficiency
    Engine
    Yuchai 118kw
    Lifting force
    25T
    Rotating torque
    7500-10000N.m
    Walking speed
    2.5km/h
    Rotate speed
    40-130rpm
    Drill pipe diameter
    89mm,102mm,108mm
    Drill pipe length
    1.5m,2.0m,3.0m
    Dimension(L*W*H)
    4100*2000*2450 mm
    Weight:
    8000 KG

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill MachineDeep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    Company Profile

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    Deep Water Well Drilling Equipment Automatic Hydraulic Crawler Water Well Drill Machine

    1.What can you buy from us?

    DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

    2.How can I make payment?

    A:You can pay by credit card, TT, Western Union, LC etc.

    3.How is the shipment?

    How long dose it take? A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

    4.How is your quality control? A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
