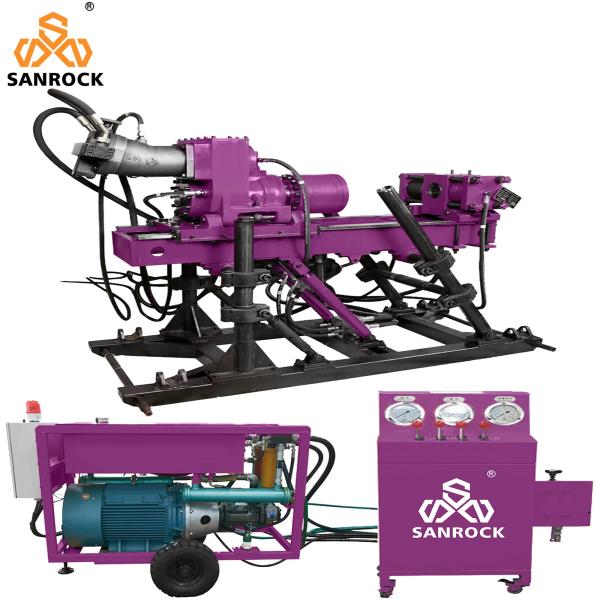

Hydraulic Core Drill Machine Tunnel Exploration 400m Mobile Core Drilling Rig For Sale
Hydraulic underground core drilling rig is suitable fro drilling holes for the purpose of mine exploring,also they could be used in surface coring,railway engineering,tunneling,construction and water conservancy project.Is designed especially for underground 360°drilling work,to drill holes in the tunnel. capable of diamond core drilling and other drilling works.
Features:
1. The sliding and extending & retracting function of the mast makes it convenient for the bottom of mast to touches the ground or platform, thus the drill rig will be more stable.
2. The swinging arm and mast can do luffing movement, which satisfy the request of multi-angle drilling.
3. The core drilling machine system of oatation,feed,pumping and clamping relies on fluid drive.
4. Under bad transportation condition, the main frame also can be disassembled ,easy to transport.
5. It is light weight, small size, easy operation, with good performance, simple structure and easy to maintain.
Products Description
| SRC400UG HYDRAULIC UNDERGROUND TUNNEL DRILLING RIG Technical Parameter | | Spindle rotational speed | 280-1200r/min | Spindle torque | 910Nm | | Axial feeding force | ≥70KN | Axial pulling force | ≥120KN | | Hydraulic system working pressure | 20MPa | Max pressure | 25MPa | | Main pump max pressure | 31.5MPa | Auxiliary pump max pressure | 21MPa | | Power head stroke | 1600mm | Surface drilling angle | 0-90 | | Underground drilling angle | 0-360 | Azimuth angle | 0-360 | | Motor Power | 55Kw | Motor rotational speed | 1480rpm | | Machine body/outer size | 2800㎜×1020㎜×1550㎜ | Weight | 1335Kg | | Power car/size | 1720㎜×690㎜×1420㎜ | Weight | 765Kg | | Console/size | 500㎜×405㎜×1080㎜ | Weight | 80Kg | | Drilling depth of various diameters | | | Bit | Drill Rod | Material | Drill Depth/m | | Outer Dia. mm | Outer Dia. mm | Rod Material | Down | Horizontal | UP | | Φ59(BQ) | Φ55.6×4.8 | XJY850 | 550m | 500m | 300m | | Φ75(NQ) | Φ69.9×4.8 | XJY850 | 450m | 400m | 250m | | Φ95(HQ) | Φ88.9×5.5 | XJY850 | 350m | 300m | 200m | | |
