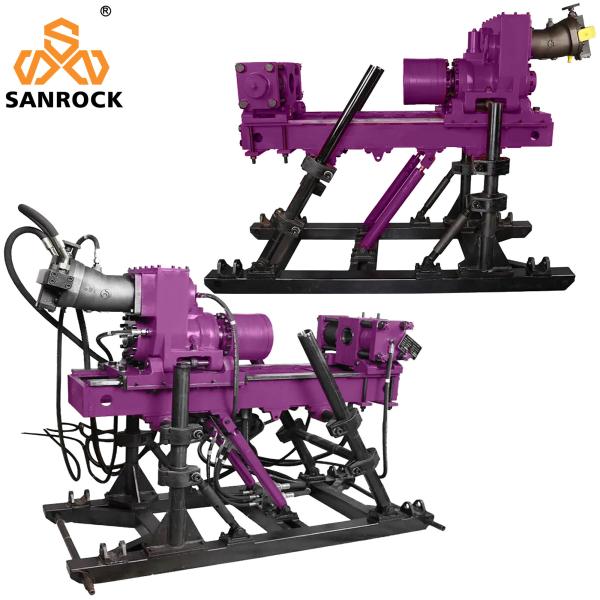

Small Core Drilling Rig Hydraulic Borehole Underground Tunnel Core Drilling Equipment
Hydraulic underground core drilling rig is suitable fro drilling holes for the purpose of mine exploring,also they could be used in surface coring,railway engineering,tunneling,construction and water conservancy project.Is designed especially for underground 360°drilling work,to drill holes in the tunnel. capable of diamond core drilling and other drilling works.
Features:
1. The sliding and extending & retracting function of the mast makes it convenient for the bottom of mast to touches the ground or platform, thus the drill rig will be more stable.
2. The swinging arm and mast can do luffing movement, which satisfy the request of multi-angle drilling.
3. The core drilling machine system of oatation,feed,pumping and clamping relies on fluid drive.
4. Under bad transportation condition, the main frame also can be disassembled ,easy to transport.
5. It is light weight, small size, easy operation, with good performance, simple structure and easy to maintain.
Products Description
| SRC200UG HYDRAULIC UNDERGROUND TUNNEL DRILLING RIG Technical Parameter | | Spindle rotational speed | 300-900r/min | Spindle torque | 800Nm | | Axial feeding force | ≥30KN | Axial pulling force | ≥60KN | | Hydraulic system working pressure | 21MPa | Max pressure | 25MPa | | Main pump max pressure | 25MPa | Auxiliary pump max pressure | 25MPa | | Power head diameter | 78mm | Power head stroke | 800㎜ | | Drilling inclination angle | 0-360 | Azimuth angle | 0-360 | | Motor Power | 22Kw | Motor rotational speed | 1480rpm | | Main body/outer size | 1800㎜×600㎜×1400㎜ | Weight | 710Kg | | Power car/size | 1400㎜×600㎜×1120㎜ | Weight | 520Kg | | Console/size | 520㎜×400㎜×920㎜ | Weight | 75Kg | | Drilling depth of various diameters | | SPEC | Bit | Drill Rod | Drill Depth/m | | | Outer Dia. mm | Inner Dia. mm | Outer Dia. mm | Inner Dia. mm | Down | Horizontal | UP | | AQ | φ47. 6 | φ27 | φ44. 5 | φ34. 9 | 400m | 300m | 180m | | BQ | Φ59.5 | Φ36.4 | Φ55.6 | Φ46 | 350m | 250m | 130m | | NQ | Φ75.31 | Φ47.6 | Φ69.9 | Φ60.1 | 280m | 200m | 100m | | |
Production shop display
