Top-drive type, high-efficiency, multi-functional fully hydraulic drilling rig features advanced technology, easy use, high operating efficiency, reliability and durability. This drilling rig is widely used in drilling water wells, detection wells, dewatering wells, rescue wells, ground source air conditioning holes, coal bed methane, natural gas, oil exploration and other projects.
1.The drilling rig can use with air compressor for DTH drilling in various formations in high-temperature areas, alpine areas and plateau areas, in the range of Plattes hardness f=4-20 drilling holes in the rock has a high drilling speed.
2.Equipped with hydraulic outriggers for leveling the rig and keeping the machine stable. The main engine is equipped with a high-power diesel engine with strong power to meet work needs.
3.Equipped with hydraulic lifting and lowering composite drill boom, which saves space and provides powerful lifting force for deep hole operations.
4.Centralized operating handles, reasonable layout, safe and feasible. Excellent workmanship, durable, and low maintenance costs.

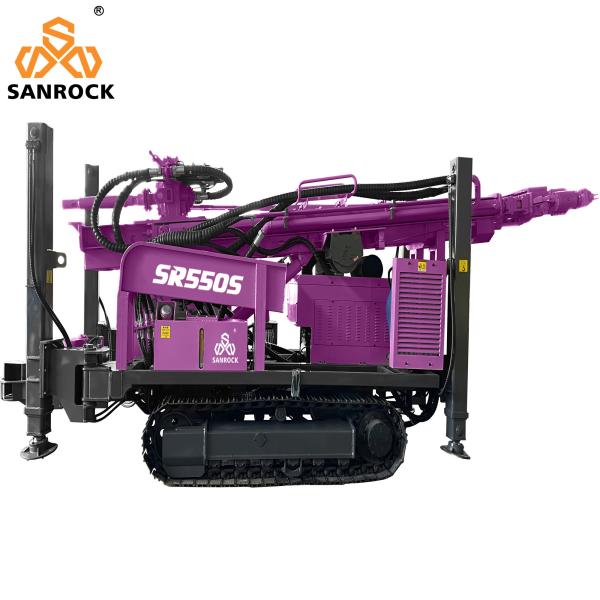

Multifunctional Water Well Drilling Rig Hydraulic Crawler Water Well Drilling Machine
Products Description
| Model | Unit | SR550S | | Max drilling depth | M | 550 | | Drilling diameter | mm | 105-400 | | Engine brand | / | CUMMINS | | Power | kw | 132 | | Rotary motor brand | / | | | Pump brand | / | | | Air pressure | Mpa | 1.2-3.5 | | Air consumption | m³/min | 16-55 | | Drill pipe length | m | 6 | | Drill pipe diameter | mm | 102 | | Axial pressure | T | 6 | | Lifting force | T | 30 | | Fast lifting speed | m/min | 33 | | Fast feeding speed | m/min | 55 | | Max rotary torque | Nm | 11000/5500 | | Max rotary speed | r/min | 90/180 | | Big auxiliary winch lifting force | T | / | | Small auxiliary winch lifting force | T | 1.5 | | Jacks stroke | m | 1.6 | | Drilling efficiency | m/h | 10-35 | | Moving speed | Km/h | 3 | | Uphill angle | / | 21° | | Weight | T | 12 | | Dimension | mm | 6400*2100*2650 | | Working condition | / | Unconsolidated formation and stone head | | Drilling method | / | Top drive hydraul ic rotary and pushing, hammer or mud drilling | |
