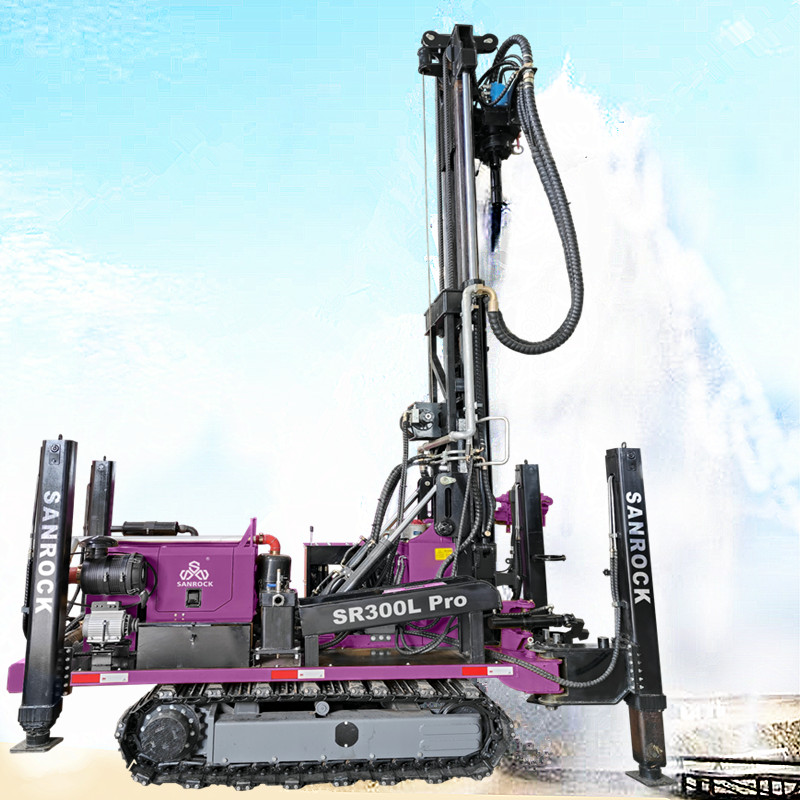

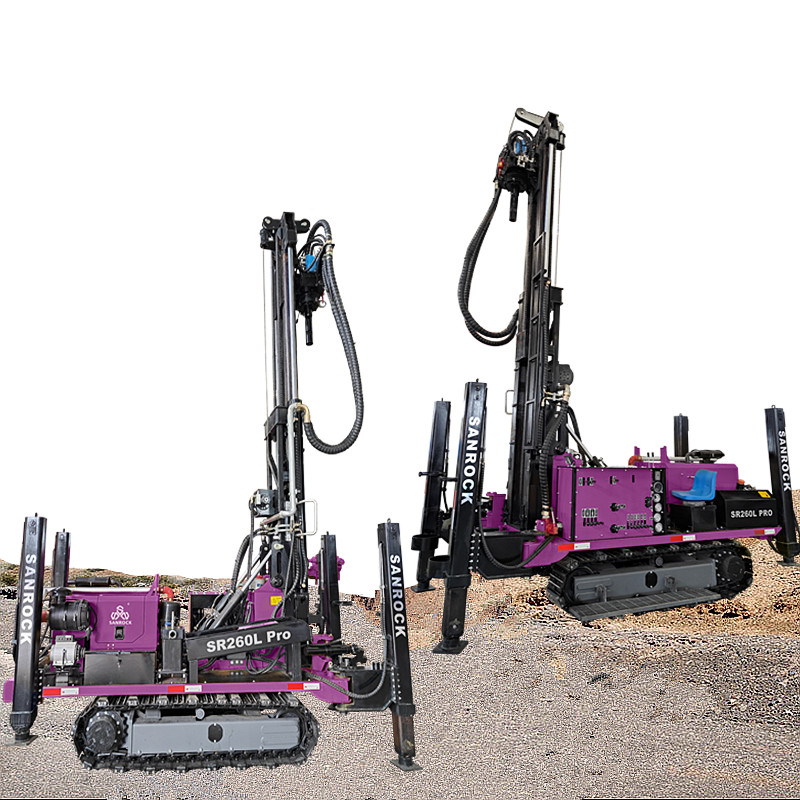

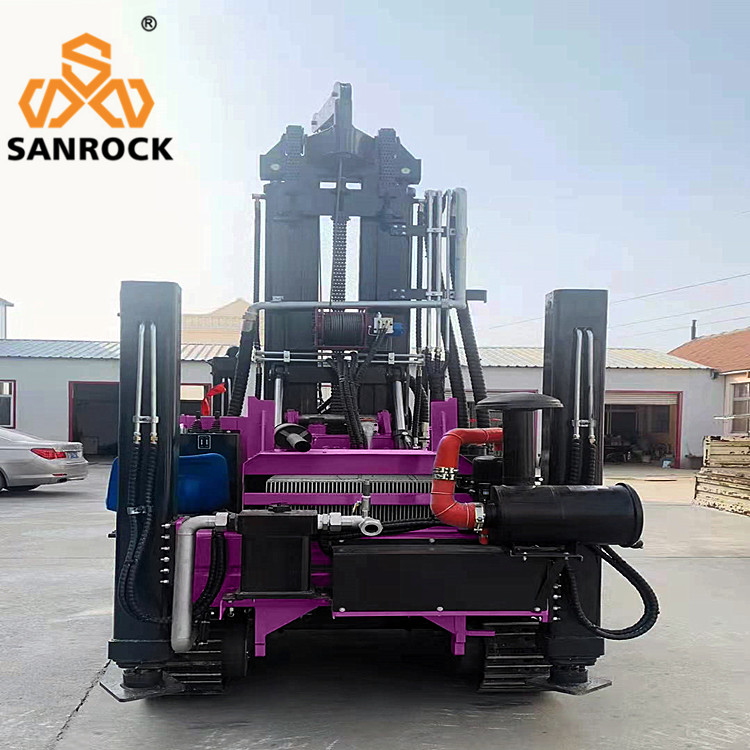

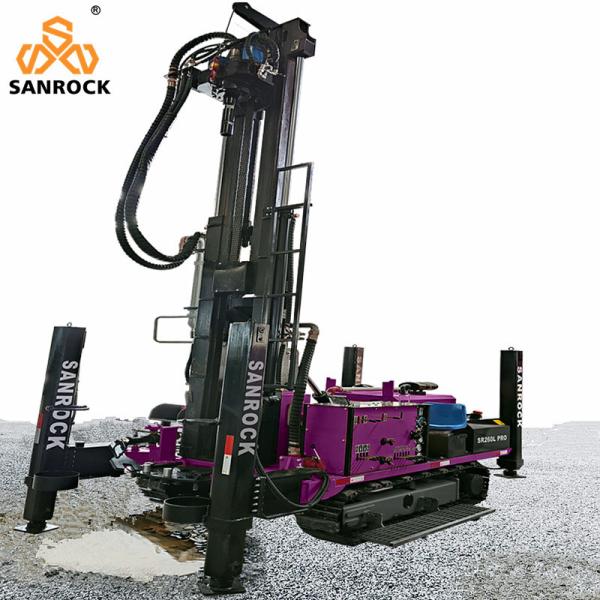

Hydraulic Water Well Drilling Rig Depth 260m Bore hole Portable
Water Well Drilling Rigs
Feature:
1.This model rig uses full hydraulic control, and the Top drive to
drive the rotation of drilling tools with very high drilling
efficiency.
2.Reasonable overall layout uses the tractor-mounted or full ground
chassis for transportation with good maneuverability.
3.Unique bump set design and centralize controlled operation system
is easy to maintain and convenient for machine operation.
Used in mining engineering construction, civil drilling, geothermal
drilling and other fields. They are widely used in industrial and
agriculture water project, testing well and other exploration
borehole. In particular, drilling hole for geothermal heating,it
can also meet the engineering basis for reinforcement, loose gravel
drilling rock formation connected with a variety of engineerin.
Products Description
Type | Rotary Drilling Rig | Engine | Cummins | Power Type | Diesel | Power | 82KW | Using air pressure | 1.7-3.5mpa | Key Selling Points | Competitive Price | Drilling Diameter | 110-325mm | Drilling Depth | 260m | Feature | Hydraulic Controlling,Light Weight High Drilling Efficiency | Product name | Water Wells Drilling Rigs | Name | hydraulic water well drilling rig | Application | Water Wells Rock Drill Rig | Keyword | Water Drilliing Rig | Lifting force | 25T | Drill rod diameter | 76/89mm | Walking speed | 2.5km/h | Swing torque | 8000-10000N.m | Air consumption | 18-36m³/min |
| |
Company Profile
1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile
driver ,anchor pile driver,rotary drill rig ,Top Hammer drill
rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air
compressor,water well drilling rig,truck mounted water well
drilling rig,screw air compressor,piston air compressor,pneumatic
rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or
land shipping. Shipping efficiency depends on country and city you
want to ship to. For small and delicate products, we ship by DHL,
UPS, Fedex or TNT. You can also appoint shipping method you like
before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection
and testing for every order before shipping out.
