Water Well Portable Core Drilling Machine / Hydraulic Drilling
Machine
Products Features
HZ200 water well drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc.
1. Keeping bracket is installed on the hosit to form a double wheel
support structure, able to withstand strong blow
2. Vertical box are fixed by four groups of bearings to ensure that
the rotary machine has sufficient rigidity to overcome gravel layer
and other complex geological conditions.
3. the machine is equipped with national patent technology---taper
clutch, with charactristics of strong transmission troque, easy
operation and free maintenance.
4. 53 x 59 drilling rod adopted, high rigidity and strong delivery
torque.
Can be made to Crawler type or Four Wheels if need.
Product Specification
Machine Parameter |
Drilling depth | 30-200m |
End hole caliber | 500-75mm |
Drill rod caliber | 50mm |
Drilling angle | 90°~75° |
Drill weight (No include power) | 910kg |
Unity machine dimensions | 2.5×1×1.3 2.5×0.9×1.3m |
Spindle |
spindle speed | 64,128,287,557r/min |
Spindle stroke | 450mm |
Hoist |
Max.single line hoisting capacity | 2500KG |
Single line lifting speed | 17,35,75,151r/min |
Tightrope caliber | 12.5mm |
Tightrope cubic measure | 35m |
Hug floodgate caliber | 254mm |
Hug folldgate belt width | 70mm |
Distance between drill and hole | 400mm |
Mud pump - Specifications |
Type | Horizontal single urn twin-action |
Displacement | 170L/min |
Diesle engine | S1115 model 22HP |
Electric motor | Y160M—4 15kw 1440r/min |
Maximum pressure | 1.5Mpa |
Work pressure | 0.7Mpa |
Water inlet caliber | 40mm |
Water to exit caliber | 30mm |
Triangle conveyer belt | B1728mm |
Suit scope |
Water well , exploration |

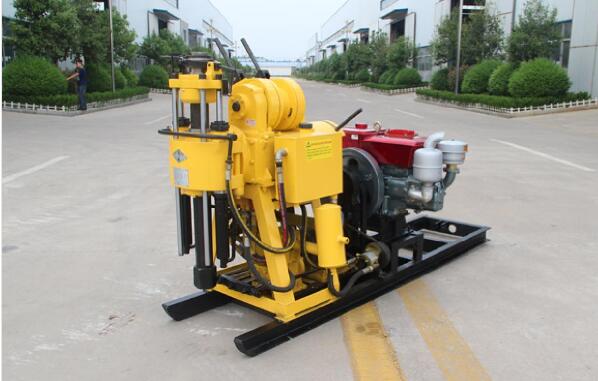

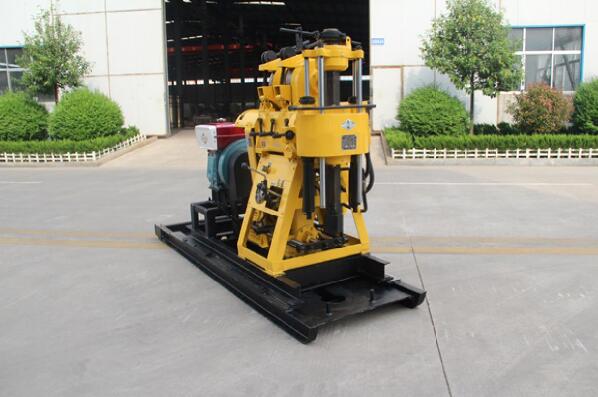

Product Pictures
