Mining DTH Drilling Machine Rotary Borehole Crawler Hydraulic DTH Drilling Rig

Ask Lasest Price
Brand Name :	Sanrock
Supply Ability :	100 Set/Sets per Month
Price :	negotiable
Model Number :	R66
Certification :	CE ISO 9001:2015

Add to Cart

Product Details
Company Profile

Mining DTH Drilling Machine Rotary Borehole Crawler Hydraulic DTH Drilling Rig

Mining DTH drilling machine rotary borehole crawler hydraulic DTH drilling rig

At urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.

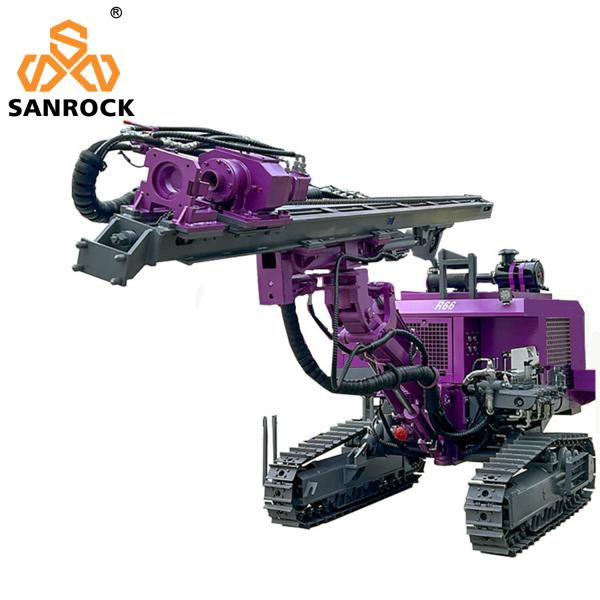

Mining DTH Drilling Machine Rotary Borehole Crawler Hydraulic DTH Drilling Rig

Products Description

Product name: DTH drilling rig
Name:R66
Brand Name:Sanrock
Method of Feed:Cylinder+Chain
Rotary Torque(Max.):5000N.M
Lifting Force:35KN
Rotary Torque(Max.):2500N.m

Power:73.5KW
Drilling Depth:50M
Rotary Speed:0-180r/min
Drilling Diameter:90-200mm
Working Pressure(bar):1-2.4Mpa
Air Consumption:14-35m3/min
Travelling Speed:3km/h
Dimension(LWH):600023802600mm
Weight:6500 KG
Climbing Angles:30°
DTH Hammer:4"/5"/ 6"

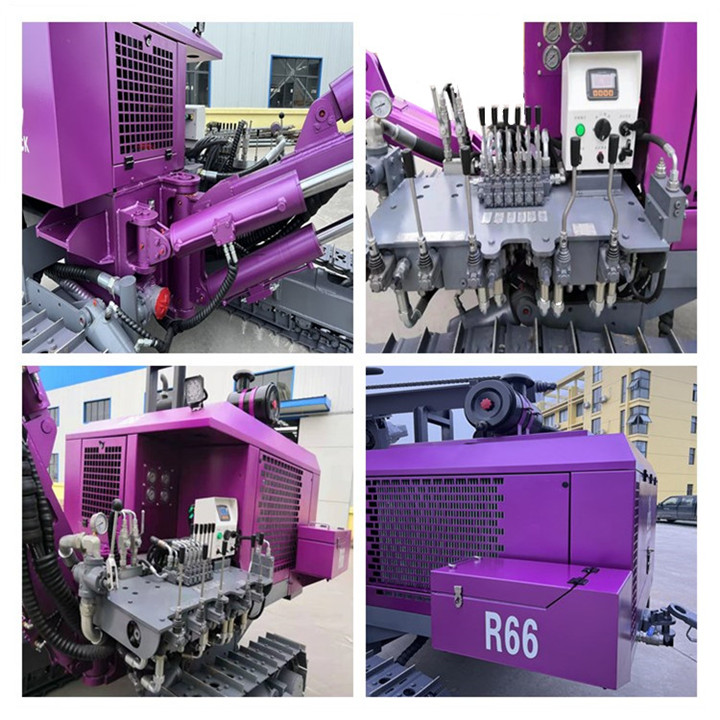

1. This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.

2. The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.

3. With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency. Hole range up to 127mm.

4.All controls integrated on the control panel for convenient operation, higher work efficiency & lower drilling cost, safer and more comfortable operation.

5.Piston tramming motor, special process casted track shoe for stronger tramming traction force & more stable quality.

Company Profile

1.What can you buy from us?

Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?

A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization? A: Our machinery is CE certified.
