Extensively applicable to drilling water wells, agricultural irrigation wells, geothermal air-conditioning wells and well holes of other purposes, especially applicable to water intake projects in mountain regions and at rock stratums.
1.This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
2.Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
3.Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
4.The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

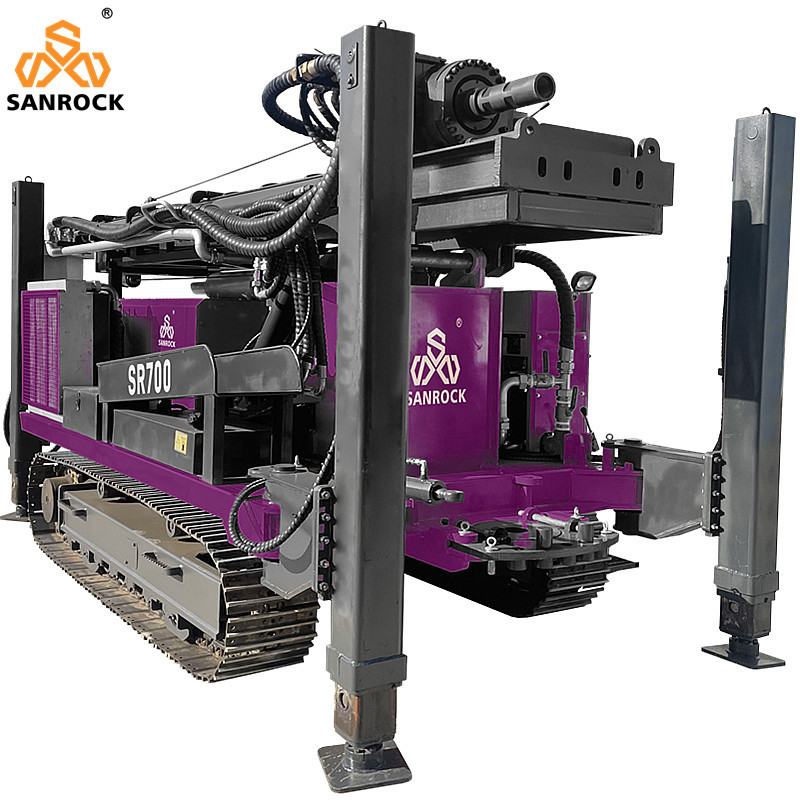

Products Description
| Product name | Water Wells Drilling Rigs | | Name | Water Drilling Rig Machine | | Application | drill water well, agrecultural irrigation well | | Drilling Capacity | Max Drilling Depth | 700 | | Max Drilling Diameter | 138-325 mm | | Drilling Rod | 89/102/114 mm | | Air Consumption | 18/42 m³/min | | Work Pressure | 1.7/3.5 Mpa | | Engine | Engine Brand | Cummins | | Engine Power | 153 KW | | Feed System | Lifting Force | 50 T | | Max. Feeding Stroke | 6.8 m | | Rotation System | Rotary Torque | 15000/18000 Nm | | Rotary Speed | 30/280 rpm | | Walk System | Walking Speed | 3 Km/h | | Climbing Capacity | 35° | | Dimensions | 4500*2100*2700 | | Weight | 11800KG | | |
Company Introduction
1.What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
