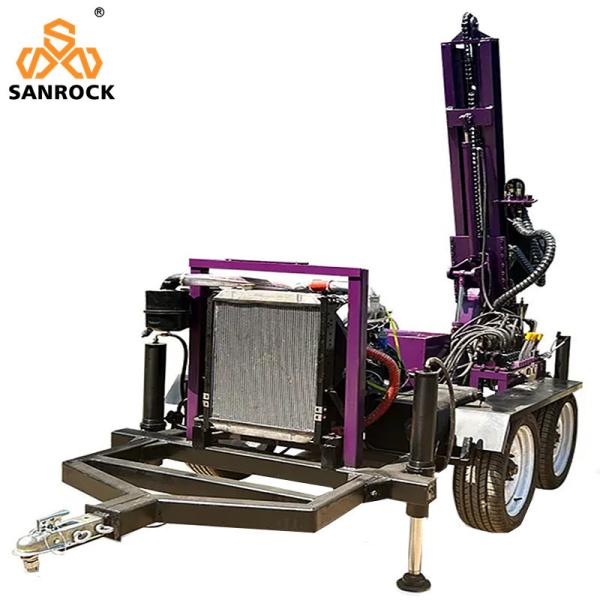

Water Well Drilling Rig is especially suitable for water intake in
mountainous and rocky strata. Pneumatic water well drilling machine
should be used together with air compressor, it can add mud pump
and foam pump. Need to use different drilling tools such as: drill
rod, hammer, rock drill bits, etc.
1.Domestic Water Supply? – Wells provide clean groundwater for
household use, including drinking, cooking, and sanitation in rural
or off-grid areas.
2.Agricultural Irrigation? – Farmers drill wells to access
underground water for crop irrigation, ensuring stable yields in
arid regions.
3.Livestock Watering? – Wells supply water for cattle, poultry, and
other livestock in remote farms or pastures.
Feature:
1. Using the principle of pneumatic impact, the drilling footage is
fast and efficient. The automobile chassis is adopted,the layout is
reasonable and compact, and the operation is simple.
2. Equipped with hydraulic outriggers for leveling the rig and
keeping the machine stable. The main engine is equipped with a
high-power diesel engine with strong power to meet work needs.
3. Centralized operating handles, reasonable layout, safe and
feasible. Excellent workmanship, durable, and low maintenance
costs.
4. Centralized control console is suitable for each manipulation
and control. 5. Rapid pulling and enhance the work efficiency.
Product Description
Product name | Water Well Drilling Rig |
Diesel power | 78KW |
Max drilling depth | 300m |
Torque | 5500-6500NM |
Speed | 200 r/min |
Drilling Hole diameter | 103-450mm |
One time advance length | 2m / 3m |
Drilling pipe diameter | 60,76,89mm |
Rig Lifting force | 14T |
Whole machine weight | 2.7T |
Dimension(L*W*H) | 3800*1900*2000MM |
Single gross weight | 2700kg |
