Core Drilling Rig Application Scenarios
Core drilling rigs are primarily employed in geological exploration, mineral resource assessment, and construction engineering for extracting cylindrical subsurface samples.
Geological Surveys - Retrieving undisturbed rock cores for stratigraphic analysis and structural mapping
Mining Exploration - Evaluating ore body continuity and mineral composition
Civil Engineering - Conducting concrete strength tests and verifying foundation integrity in infrastructure projects
Features:

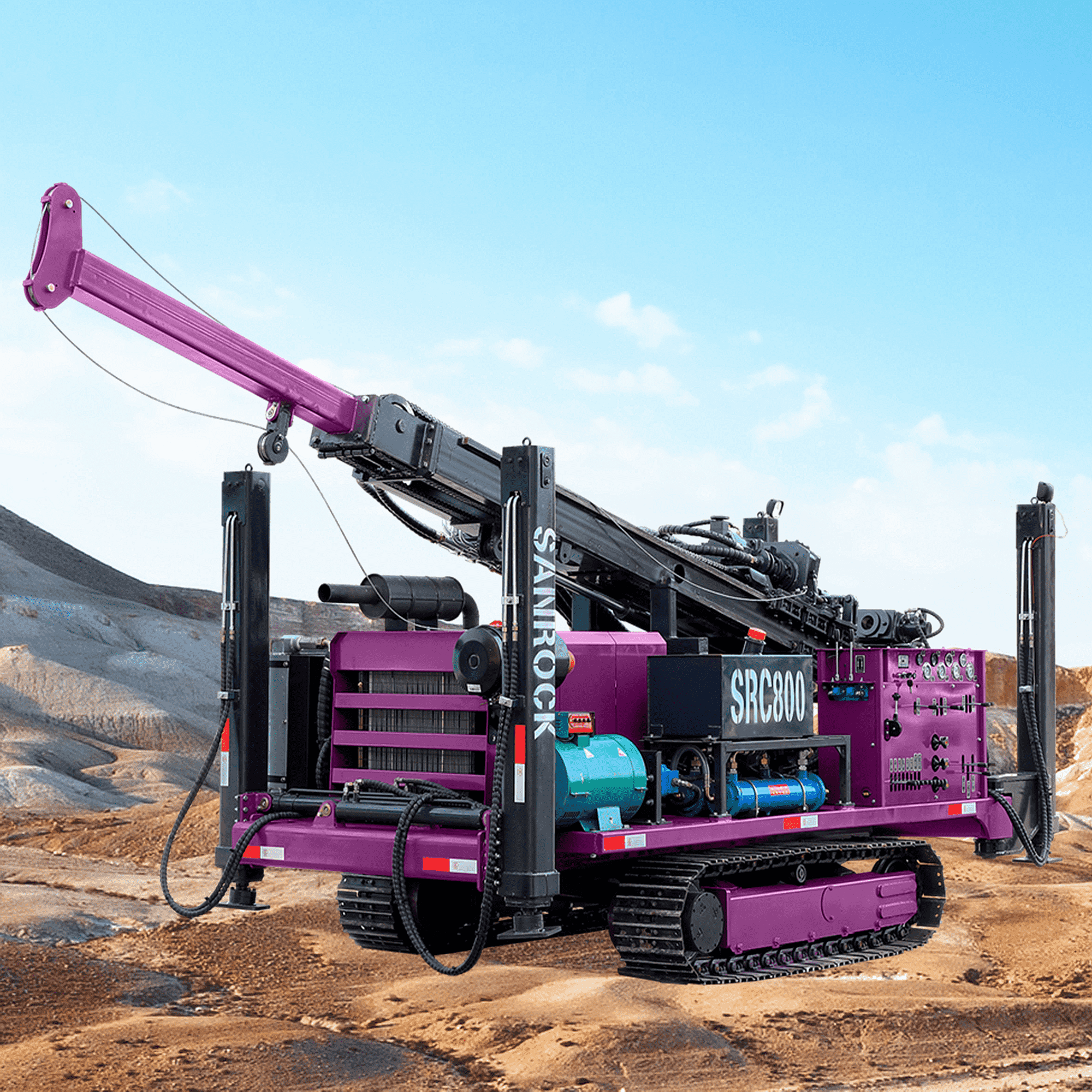

1.Surface hydraulic core drilling rig has excellent performance, drilling depth of 1500meters.
2.Mud pump system meets the requirements of different geological conditions and different drilling hole diameter.
3.The standard configuration is NQ, HQ PQ diameter drilling tools which can meet the high pressure, high torque, high rpm drilling parameters to achieve efficient and fast hole formation.
4.High Efficiency With big torque, high power unit allocation and with reasonable structure design ,all these guarantee the drill rig’s high operation and performance efficiency.
5.With an elegant outline, compact structure, reliable performance and operation easily.
Drilling rig is multifunctional, it can be used with mud pump.The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose.
Note:16KW brushless generator,Hydraulic double cooling system,BW160/10 Mud Pump,High support legs, Remote control walking, 4m drilling mast(optional)
Hydraulic control drill mast can be raised and put down by hydraulic cylinders, which saves time and worker labor.
Four hydraulic jacks, can lift the machine be loaded onto and unloaded from truck compartment.
Also they can be used for rig leveling and support at work.24V electric-start diesel engine reduces the operator's labor intensity.
Products Description
| Model | SRC-1500 | | Drilling depth( m ) | 1500 | | Drill pipe diameter( mm ) | BTW/NTW/HTW/PTW | | Drill pipe length( m ) | 1.5/2/3 | | Max.feed stroke( m ) | 2.4/4 | | Engine brand (optional) | Weichai 180kw | | Torque( N.m) | 1600-3800 | | Rotary speed( rpm ) | 160-1600 | | Max.lifting force( T ) | 26 | | Movement | Hydraulic crawler/Remote | | Walking speed( Km/h ) | 2.5 | | Gradeability( Max. ) | 35 | | Dimension( mm ) | 4900*2100*2500 | | Overall weight( T ) | 8.6 | | |
