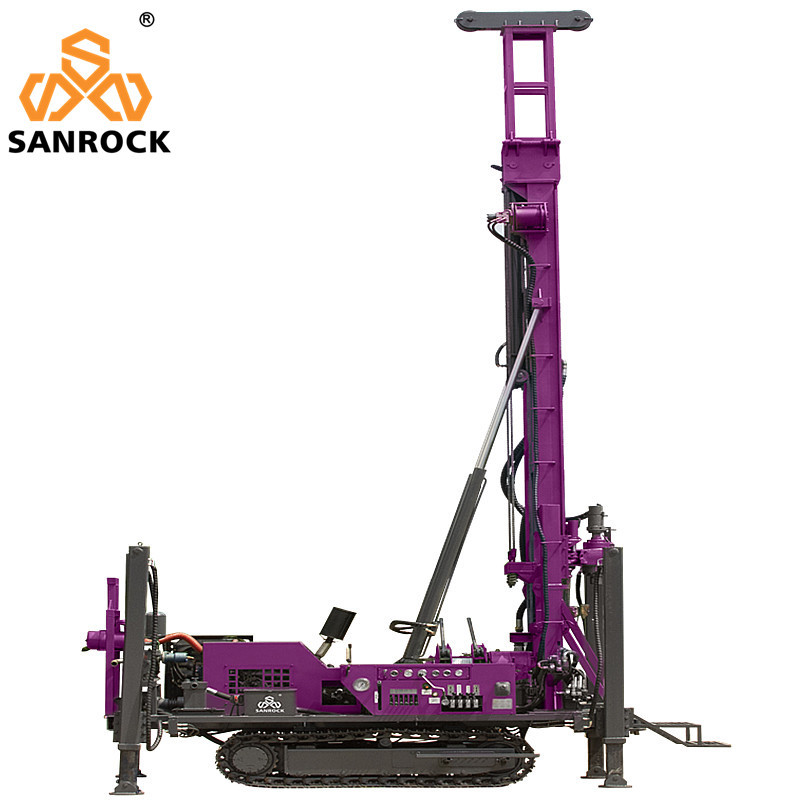

Small Core Sampling Drilling Rig Hydraulic Exploration Drilling
Machine Core Drilling Rig
Very flexible in difficult roads and can be widely used in many
fields such as resource exploration of hydrology wells,coalbed
methane, the shallow layer of shale gas, terrestrial heat, etc, and
can also be used for coal-mine gas exploitation salvage work.
The top-mounted driving head principal shaft has a great drift
diameter, suitable for many kinds of construction work such as
slurry drilling, air drilling, and air foam drilling, meeting the
demands for well-drilling at different terrain strata. Mechanical
top-drive drilling rig is a machine that mixes mud drilling rig and
air drilling rig in one equipment. It adopts MT or AMT manual
automatic transmission, 10 grade forward gears, and 2 grade reverse
gears. Positive and negative switching is sensitive and convenient.
Main drilling methods: conventional DTH hammer drilling, non-core
PDC bit or tricone bit drilling.
Features:
1.This model rig uses full hydraulic control, and the Top drive to
drive the rotation of drilling tools with very high drilling
efficiency.
2.Reasonable overall layout uses the tractor-mounted or full ground
chassis for transportation with good maneuverability.
3.Surface hydraulic core drilling rig has excellent performance,
drilling depth of 500meters.
4.Mud pump system meets the requirements of different geological
conditions and different drilling hole diameter.
5.The standard configuration is NQ, HQ PQ diameter drilling tools
which can meet the high pressure, high torque, high rpm drilling
parameters to achieve efficient and fast hole formation.
6.High Efficiency With big torque, high power unit allocation and
with reasonable structure design ,all these guarantee the drill
rig’s high operation and performance efficiency.
7.With an elegant outline, compact structure, reliable performance
and operation easily.
Products Description
Model | SRC500M | Drilling capacity | Drilling depth for water well | 350m(75mm~220mm) | Wireline coring NQ size | 500m | Borehole (Drill bit) dia. | Ø75～Ø350mm | Drilling angle | 90° | Drive head | Lifting capacity | 120kN | Thrusting capacity | 85KN | Rotary speed RPM | Turning right:27-901r/min | Turning left:48-219 r/min | Max. Torque | 10500N.m | Power Unit | Engine Model | YN27 | Rated power/speed | 58kW/ 2400r/min | Mechanical winch capacity | 5.5Ton | Drill pipe | Drill pipe diameter | Ø50/ Ø60 / Ø76/ Ø89mm
NQ/ HQ /PQ | Drill pipe length | 3000mm | Mud pump | BW160/ BW200/ BW250/BW320/BW450 | Crawler chassis | Walking speed | 0-2 km/h | Climbing angle | Max. 25-30° | Dimension | Transport | 5600*2100*2600mm | Working | 3800*2400*7600mm | Weight with steel crawler | 6500kg |
|
Company Profile
1.What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling
rig,highway pile driver,solar pile driver ,anchor pile
driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo
drill rig ,DTH hammer,drill rod,screw air compressor,screw air
compressor,piston air compressor,pneumatic rock drill ,drill
bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or
land shipping. Shipping efficiency depends on country and city you
want to ship to. For small and delicate products, we ship by DHL,
UPS, Fedex or TNT.You can also appoint shipping method you like
before we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection
and testing for every order before shipping out.
