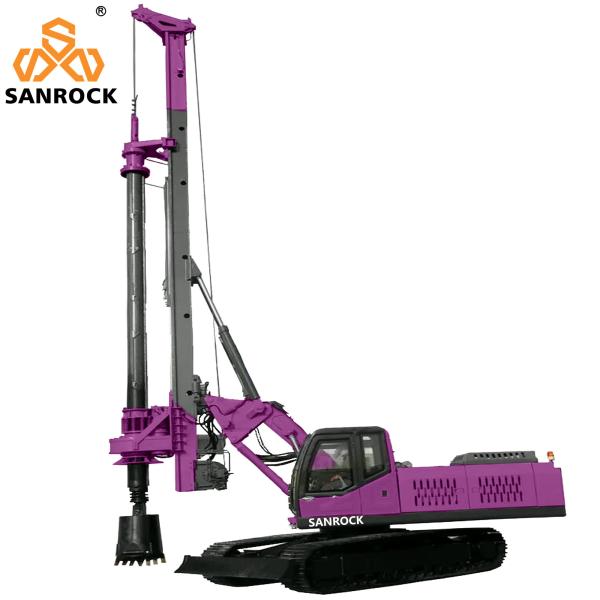

    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine

    Ask Lasest Price
    Brand Name : SANROCK
    Model Number : SRP520
    Certification : CE ISO 9001:2015
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300Set/Sets per Month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine

    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine

    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine

    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine

    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine

    The structure is simple and delicate, the durability is good, the stability of the whole machine is good, the cost is saved and the maintenance is more convenient.
    Infinite rotation, double-lift winch, main winch to ensure that the rated lifting weight, is more than twice the year-on-year increase.
    Match the reasonable hydraulic system, the oil temperature is normal in summer.


    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine


    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile MachineHeavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine

    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine

    Products Description

    Produce Name: Rotary Drilling Rig
    SRP520 Main Technical Parameters
    Engine
    Model
    Cummins/Weichai
    Rated power
    KW
    153
    Rotary Drive
    Max.output torque
    KN.m
    100
    Rotary speed
    r/min
    17-35
    Max.Drilling Diameter
    mm
    1400
    Max.Drilling Depth
    m
    20
    Main Winch
    Rated Tension
    KN
    80
    Max.single-rope speed
    m/min
    60
    Auxiliary Winch
    Rated Tension
    KN
    30
    Max.single-rope speed
    m/min
    60
    Lateral/forward/backward inclination of mast
    °
    ±5/5/15
    Pull-Down Cylinder
    Max.pull-down piston push
    KN
    100
    Max.pull-down piston pull
    KN
    120
    Maximum stroke
    mm
    3000
    Chassis
    Max.traveling speed
    km/h
    2.5
    Min.ground claerance
    mm
    360
    Crawler board width
    mm
    600
    System Working Pressure
    MPa
    32
    Overall Drilling Weight
    t
    24
    Dimension
    Working Condition
    mm
    7150*2600*11700
    Transportation Condition
    mm
    9700*2600*3450

    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile MachineHeavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile MachineHeavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile MachineHeavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine

    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine

    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine

    Company Profile

    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine

    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine

    Heavy Rotary Drilling Rig Equipment Hydraulic Borehole Pile Machine

    1.What can you buy from us?

    DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.


    2.How can I make payment?

    A:You can pay by credit card, TT, Western Union, LC etc.



    3.How is the shipment? How long dose it take?

    A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.



    4.How is your quality control?
    A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
