Scope of application: it is suitable for industrial and civilian drilling and low temperature drilling. It has the characteristics of large drilling diameter, deep drilling, quick progress, flexible and efficient. Made from high quality materials, with fashion and compact design, which keeps our drilling rigs more efficiency and with low failure rate, more economic and dura.
1. The designed composite boom is adopted. The boom has small volume, long stroke, double oil cylinder lifting force and large lifting tonnage of the drilling rig;
2. Each drilling rig is equipped with a baffle on the main boom to protect the oil cylinder; Each hydraulic oil pipe is equipped with a thickened protective sleeve to prolong the service life of the oil pipe;
3. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance, and low cost.

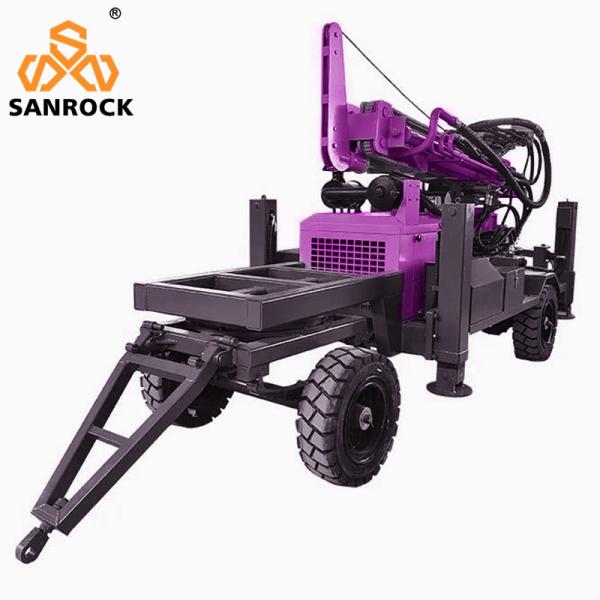

4. Drilling rig chassis: professional trailer chassis with hydraulic support legs, solid and durable, heavy bearing, 4 wheels, convenient for moving and transportation.
5. Dual system: could work with air compressor for air DTH hammer drilling, also could work with mud pump for rotary mud drilling.
Products Description
| Type | Rotary Drilling Rig | | Power Type | Diesel | | Weight | 4500KG | | Key Selling Points | high performance cost ratio | | Drilling Diameter | 200mm, 140-254mm | | Drilling Depth | Max.200m | | Product name | Water Wells Drilling Rigs | | Application | Water Wells Rock Drill Rig | | Feature | Light Weight High Drilling Efficiency | | Name | portable water well drilling rig | | Drill rod diameter | 76mm,89mm | | Rotating torque | 4200-5600N.m | | Drill rod length | 3.0m | | Power | 55kw | | Rotation speed | 45-65rpm | | Working air pressure | 1.3-2.7Mpa | | |
Our water well drilling machines are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation, etc projects. We also have crawler water well drilling rig for your option. For any details or further demands, welcome to consult us.
Company Profile
1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
