Extensively applicable to drilling water wells, agricultural irrigation wells, geothermal air-conditioning wells and well holes of other purposes, especially applicable to water intake projects in mountain regions and at rock stratums.
Feature:
1.SR180 series deep(water) well-drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
2.Water Well Crawler Drilling Rig is a light, highly-efficient and multifunction drilling device,convenient use, reliability and durability.
3.Each hydraulic tubing is covered with a protective shell to effectively extend the service life of pipeline.
4.Lifting force: composite arm with small size yet long stroke, double cylinder lifting, strong lifting capacity
5.Hydraulic oil pump: It uses parallel gearbox to separate oil pump monomer, supply adequate power and distribute reasonable. The hydraulic system adopts unique design, which is easy to maintain and can lower the maintenance cost. 6.Rotary head device: integrated casting gearbox , dual motor power, large torque, durable, small maintenance costs.
Products Description
|

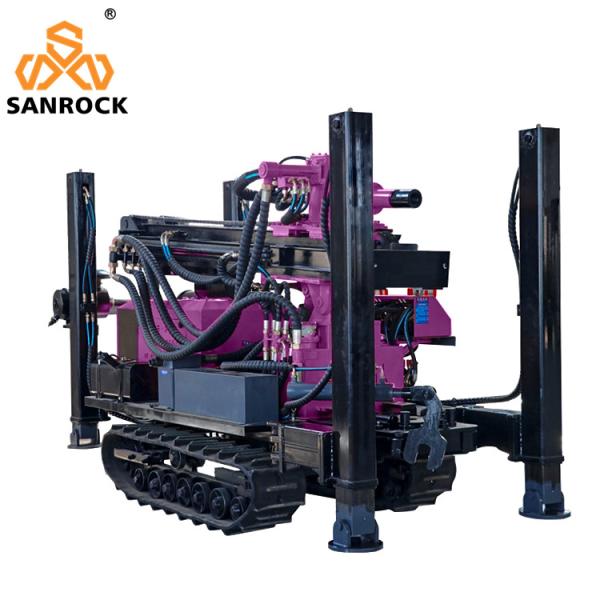

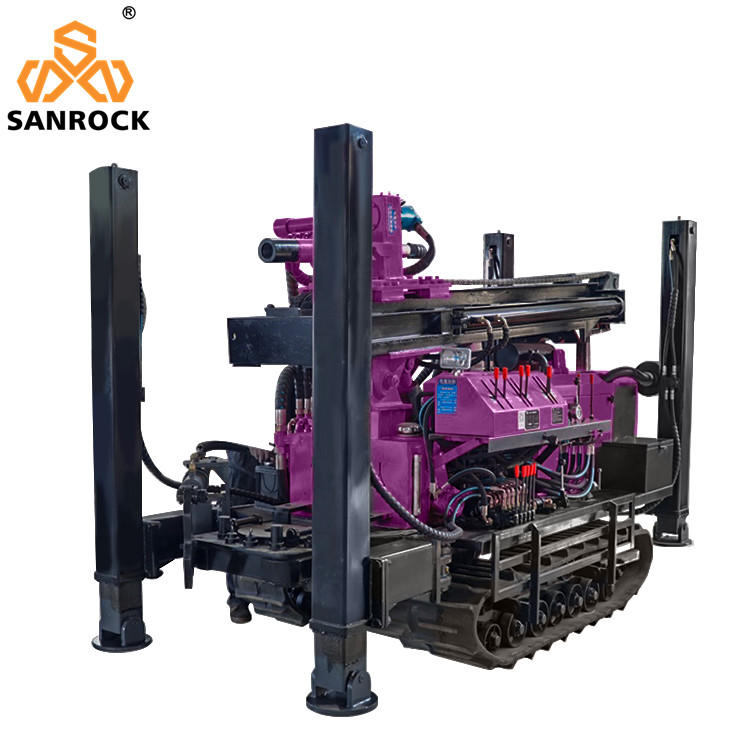

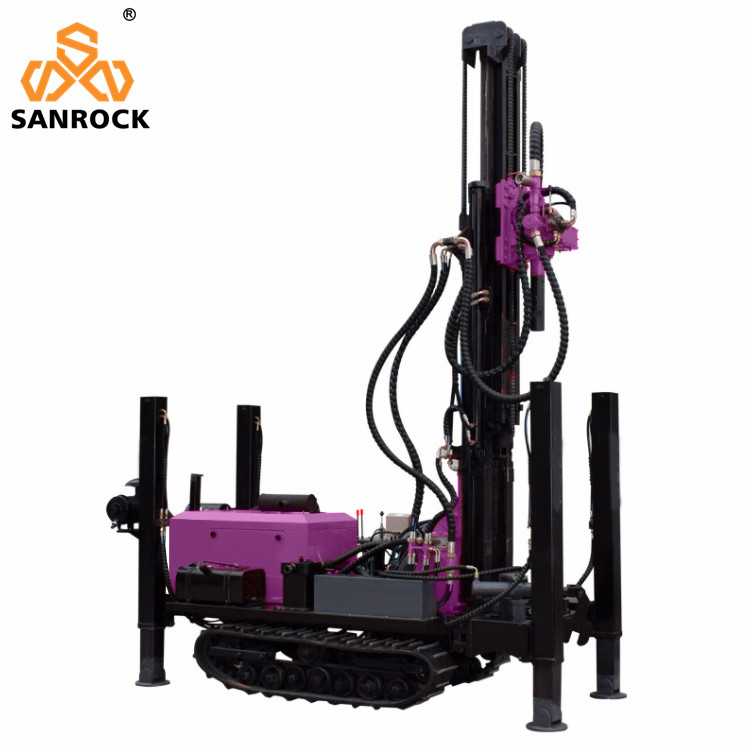

Product Name:SR180 hydraulic water well drilling rig
|
|
Drilling Depth:180m
|
|
The hole diameter:140-254mm
|
|
Equipped capacitor:60KW
|
|
Using air pressure:1.7-2.5MPA
|
|
Air consumption:17-31m3/min
|
|
Swing speed:45-70rpm
|
|
Climbing angles:30Max
|
|
Walking speed:2.5km/h
|
|
Swing torque:3200-4600N.m
|
|
The engine brand:Yuchai engine
|
|
Equipped with hammer:Medium and high wind pressure series
|
|
The penetration efficiency:10-35m/h
|
|
Drill pipe diameter:76mm / 89mm
|
|
Drill pipe length:1.5m / 2.0m / 3.0m
|
|
Dimension:4000×1630×2250mm
|
|
The weight:5200KG
|
|
|
Company Profile
1.What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
Quzhou Sanrock Heavy Industry Machinery Co., Ltd.
Established in 1992, Quzhou Sanrock Heavy Industry Machinery Co.,
Ltd. is a manufacturer specialized in the research, development and
production of DTH drilling rig, Water well drilling rig, DTH
hammer, DTH bits, Drilling Pipe and all accessories about above
products.
We are located in Quzhou City, Zhejiang, with convenient
transportation access. And our factory covers an area of 10,000
square meters and has more than 500 staff.
All of our products comply with international quality standards and
are greatly appreciated in a variety of different markets
throughout the world. If you are interested in any of our products
or would like to discuss a custom order, please feel free to
contact us. We are looking forward to forming successful business
relationships with new clients around the world in the nearfuture.
