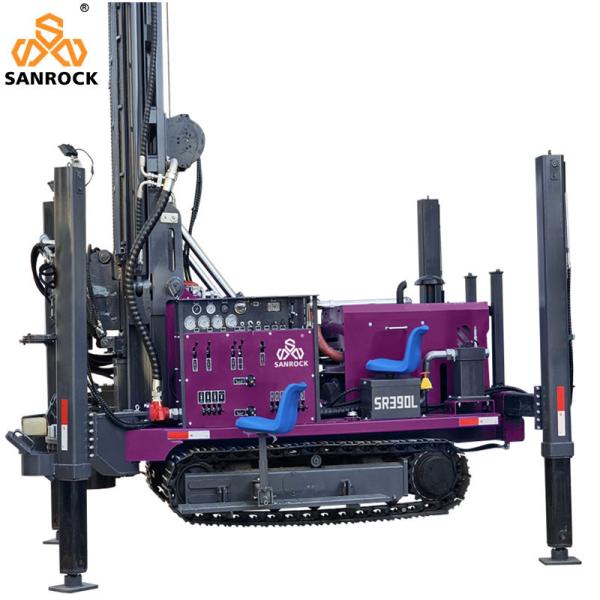

SR390L Water and Steam Dual-purpose Drilling Rig Technical Parameters
Used in mining engineering construction, civil drilling, geothermal drilling and other fields. They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating,it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineerin.
Feature:
1.This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
2.Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
3.Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.
Products Description
|
Model
|
SR390L
|
|
Drilling depth( m )
|
390-500
|
|
Recommended drilling diameter( mm )
|
138-325
|
|
Maximum stroke of power head( m )
|
6.6
|
|
Power head motor
|
8k-630*630
|
|
Engine brand
|
Yuchai
|
|
Engine power( Kw )
|
91(four cylinder)
|
|
Working air pressure( mpa )
|
1.7-3.5
|
|
Gas consumption( m3/min)
|
18-36
|
|
Rotating torque of power head( N.m)
|
12000
|
|
Power head rotation speed( rpm )
|
30-150
|
|
Maximum lifting force( T )
|
38
|
|
Recommended drill pipe diameter( mm )
|
76/89/102
|
|
Recommended drill pipe length( m )
|
1.5/2/3/6
|
|
Mobile mode
|
Hydraulic crawler
|
|
Walking speed( Km/h )
|
2.5
|
|
Climbing ability( Max. )
|
30
|
|
Dimensions( mm )
|
3900*1700*2380
|
|
Weight( T )
|
8.2
|
|
