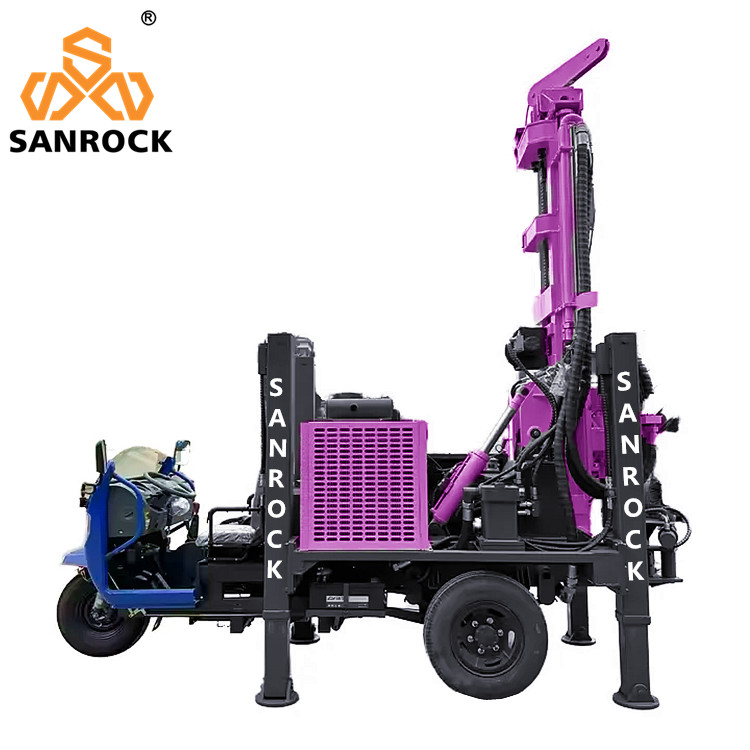

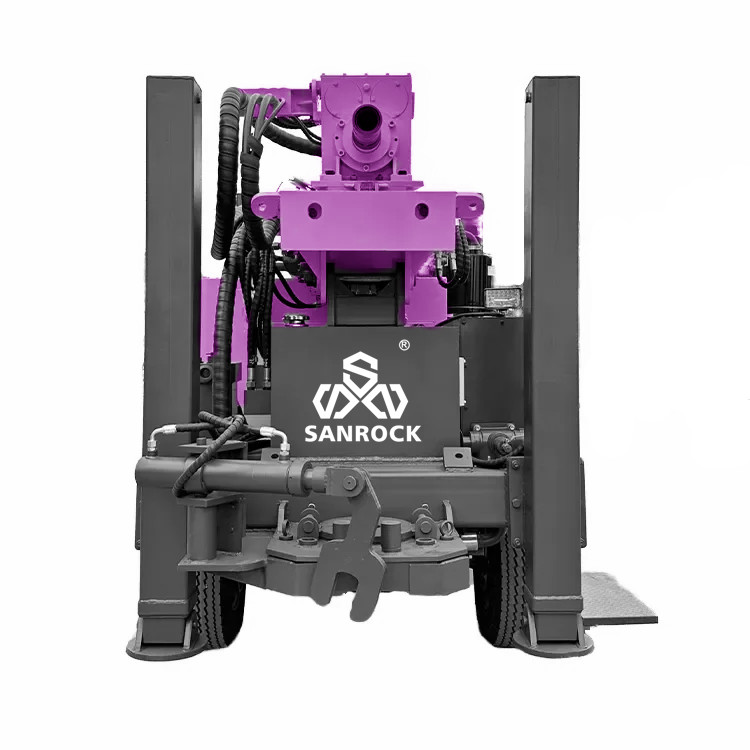

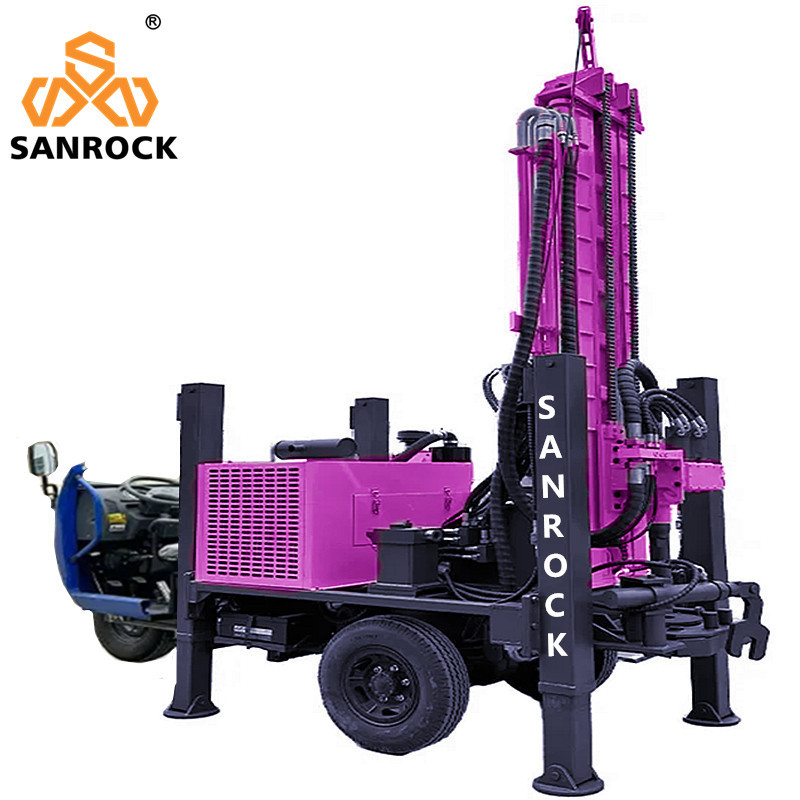

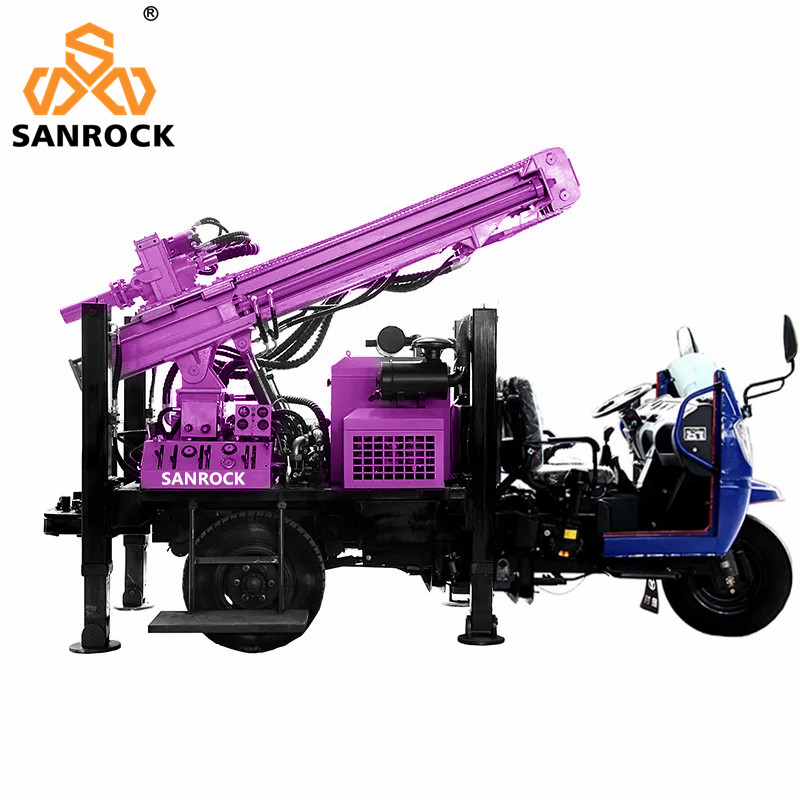

SRL200 water well drilling rig easy to use, high efficiency, reliable, durable and other characteristics, widely used in drilling wells, agricultural irrigation, air hole and other use of geothermal well hole, is particularly applicable to mountain area and rock formation water engineering. The drill rig adopts the new type of hydraulic technology, supporting the rotary hydraulic motor with high torque and big diameter hydraulic cylinder propulsion, greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality.
1. Compound boom, double cylinder lifting; unique design and simple drilling structure.
2. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
3. It has high flexibility, is sturdy and durable, assure easily operation and long life service life.
4. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
5. The whole machine uses a three-wheeled tractor with high horsepower and low torque, which can cope with more complex road conditions and is easy to move.
6. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump.
Product Description
| Model | SRL200 | | The hole diameter (mm) | 140-254 | | Drilling depth(m) | 200 | | One-time advance length (m) | 3.6 | | Walking speed(km/h) | 20-40 | | Climbing angles(Max.) | 30 | | Equipped capacitor(kw) | Yunnei 65KW Quanchai 76KW | | Using air pressure(MPA) | 1.7-2.5 | | Air consumption (m³/min) | 17-31 | | Swing speed (rpm) | 45-70 | | The penetration efficiency (m/h) | 10-35 | | Drill pipe diameter (mm) | Φ76 Φ89 | | Drill pipe length (m) | 1.5m 2.0m 3.0m | | Rig lifting force (T) | 13 | | Rapid rise speed (m/min) | 20 | | Fast feeding speed (m/min) | 40 | | Width of loading (m) | 2.4 | | Hoisting force of winch (T) | 1.5m | | Swing torque (N.m) | 3400-4700 | | Dimension (mm) | 4350×1600×2450 | | The weight (T) | 4.7 | | Equipped with hammer | Medium and high wind pressure series | | High leg stroke (m) | 1.4 | |
Company Profile
1.What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
